LOC-9.5DL-MW-MCCT-V2
LOC-9.5DL-MW-MCCT-V2
SKU# DL0075

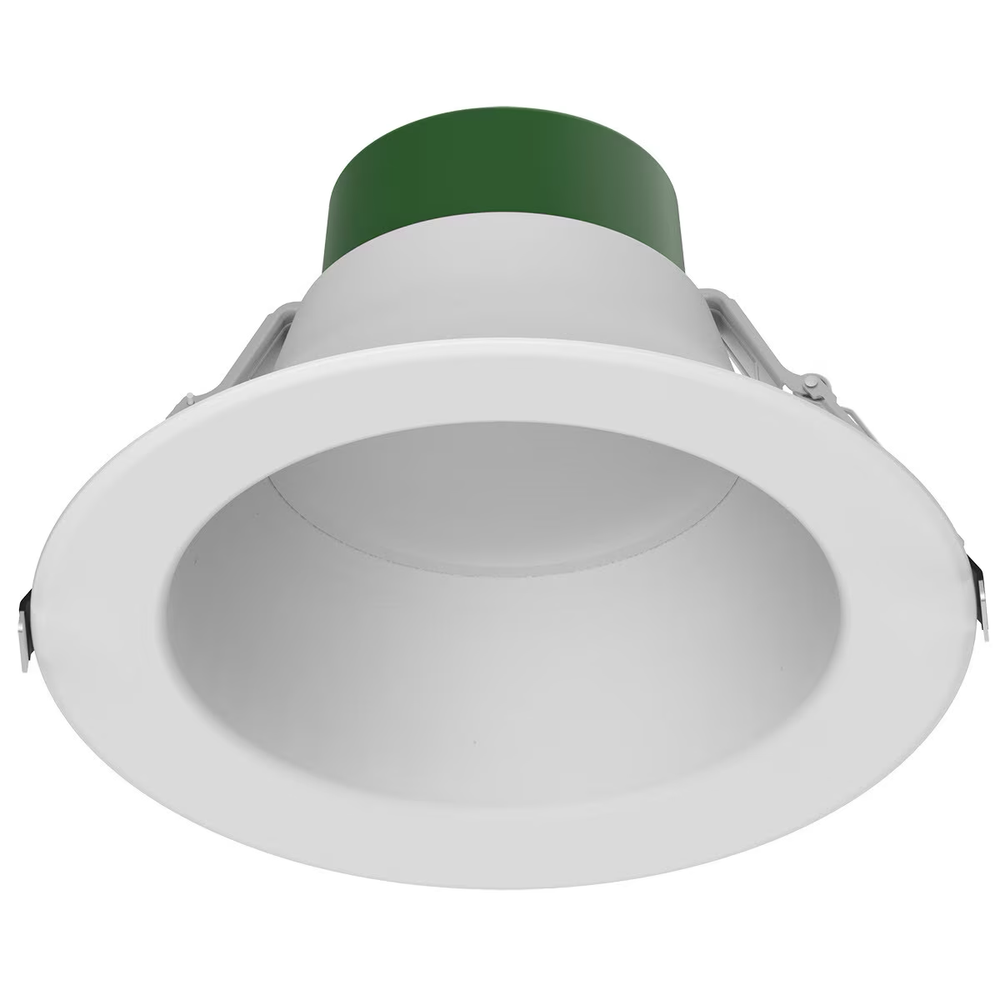

LOC-9.5DL-MW-MCCT-V2 - LED 9.5 INCH COMMERCIAL DOWNLIGHT, MULTI-WATTAGE 20W/25W/32W, MULTI-CCT 3000K/3500K/4000K, 0-10V DIMMING, 120-277V, CRI90, UL, ES, AND JA8 LISTED
Wattage: Multiple Wattage, 20W, 25W, 32W
CCT: 3000K, 3500K, 4000K, Multiple Color Temperature
Voltage:120-277Vac
_________________________________________________________________________
CERTIFICATIONS:
_______________________________________________________________________
FEATURES AND DESCRIPTIONS.
|
Kitchens, bedrooms, bathrooms, corridors, hallways museums and more. |
|
• Lumiled LED Chips • Commercial grade • Torsion clips to install in place |
ELECTRICAL SPECIFICATIONS:
- Multi Wattage: 20W, 25W and 32W
- Default Wattage: 32W
- Multi CCT: 3,000K, 3,500K and 4,000K
- Default CCT: 4,000K
- 20W: 2,000LM 93.8LM/W
- 25W: 2,500LM 93.8LM/W
- 32W: 3,000LM 93.8LM/W
- Power Factor: 0.9
- CRI: 94
- 120-277Vac, 50/60Hz
- 0-10V dimming
- IP20 rated
- 90° beam angle
- 50,000 hours lifetime | 5 year limited warranty
