LOC-4FTWA-MW(22/28/34/44) MCCT(35/40/50)D
LOC-4FTWA-MW(22/28/34/44) MCCT(35/40/50)DĀ
SKU# SL0054

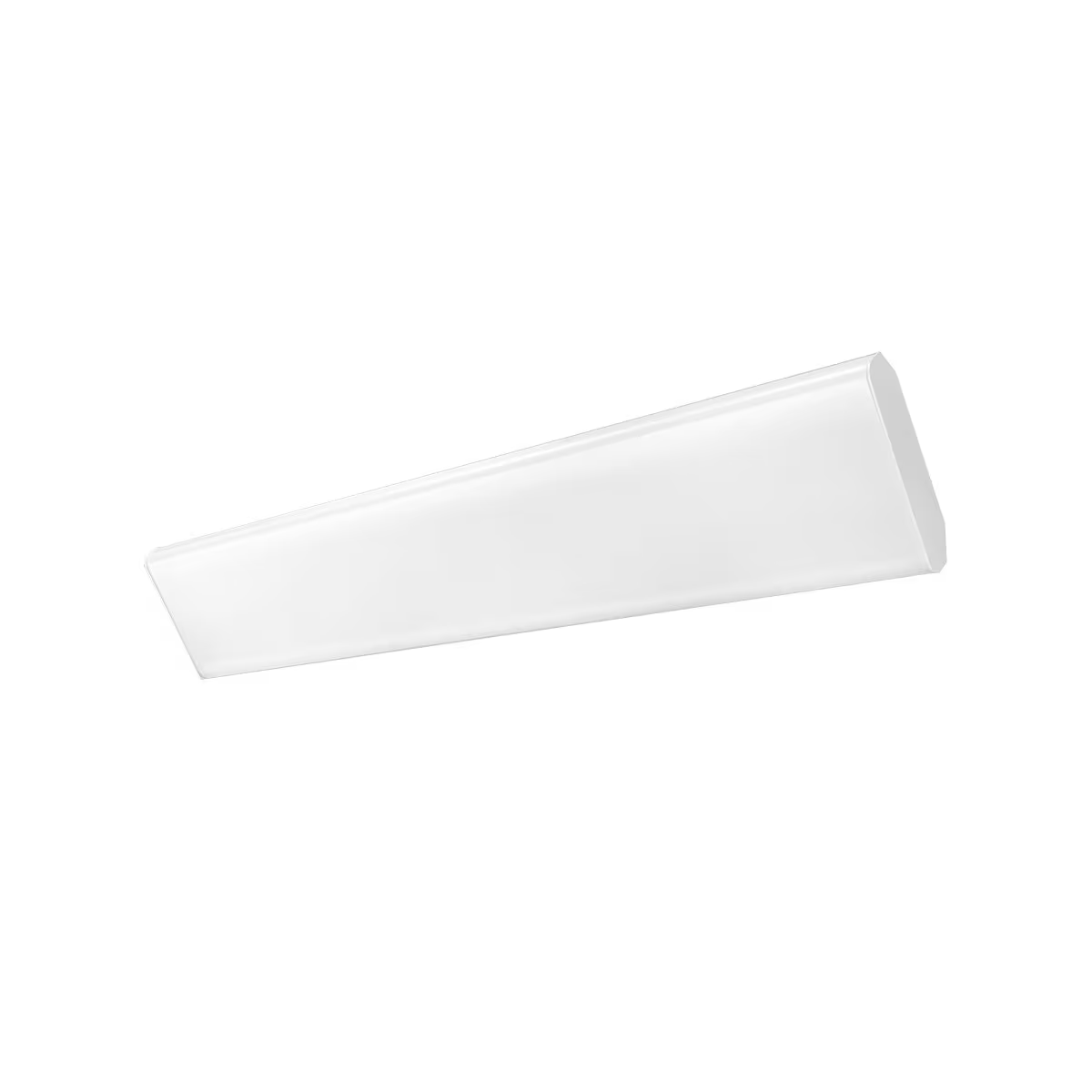

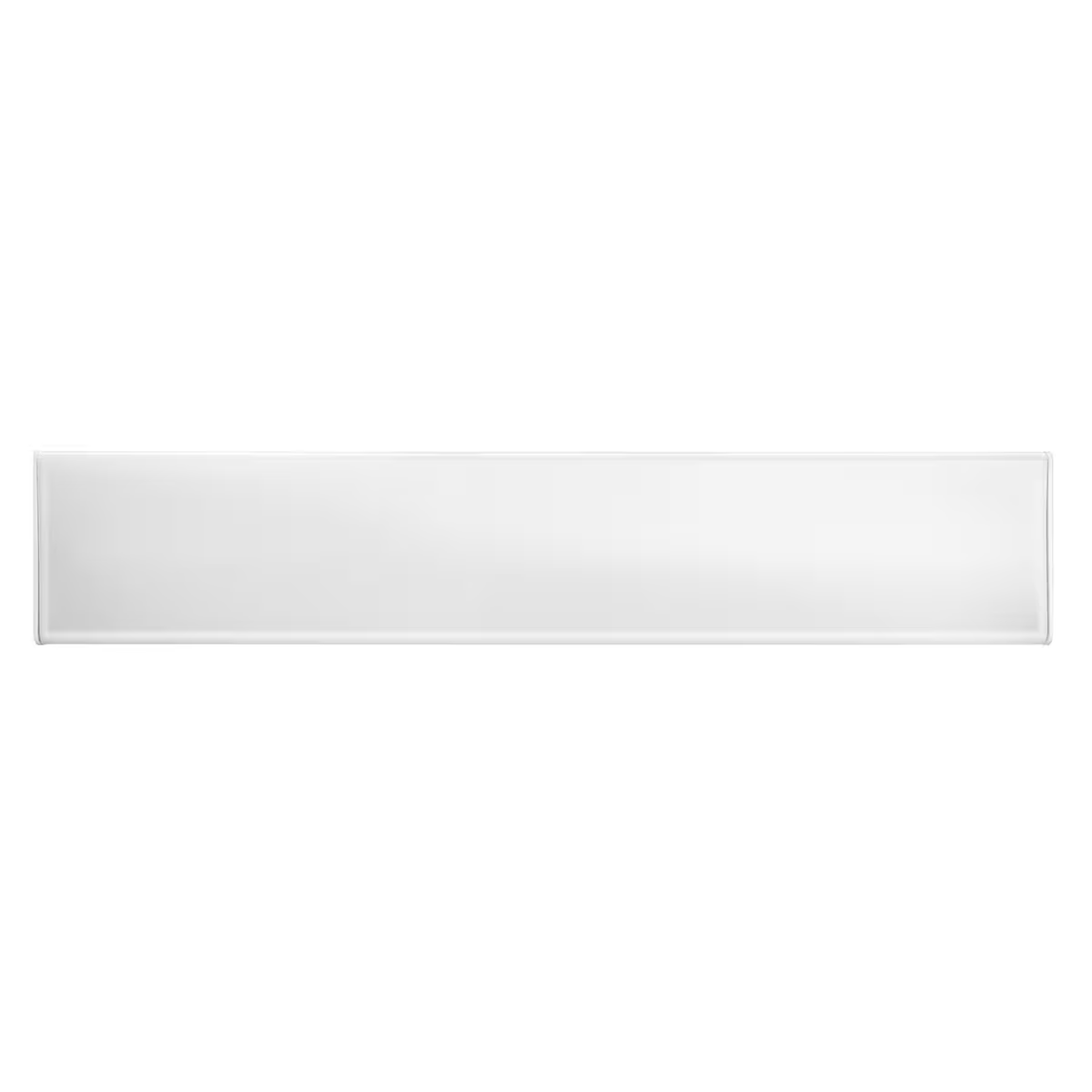

LOC-4FTWA-MW(22/28/34/44) MCCT(35/40/50)D - 4 FOOT WRAP AROUND LIGHT MULTI-WATTAGE 22W/28W/34W/44W, MULTI-CCT 3500K/4000K/5000K
Wattage: Multiple Wattage, 22W, 28W, 34W, 44W
CCT: 3500K, 4000K, 5000K, Multiple Color Temperature
Voltage:120-277Vac
CERTIFICATIONS:
Ā Ā Ā Ā Ā Ā
_________________________________________________________________________
Features and Descriptions:
| Parking lots, supermarkets, corridors, retail spaces, warehouses and more. |
|
ā¢ Samsung 2835 LED Chips ā¢Frosted lens ā¢Ā ABS endcaps design for easy installation and removal of lens ā¢Ā 22-gauge metal housing with matte white finish |
ELECTRICAL SPECIFICATIONS:
- Multi Wattage: 22W, 28W, 34W and 44W
- Default Wattage: 44W
- Multi CCT: 3,500K, 4,000K and 5,000K
- Default CCT: 5,000K
- 22W: 3,031.6LM 137.8LM/W
- 28W: 3,858.4LM 137.8LM/W
- 34W: 4,685.2LM 137.8LM/W
- 44W: 6,063.2LM 137.8LM/W
- Power Factor: 0.9
- CRI: 80
- THD: 20%
- 120-277Vac, 50/60Hz
- 0-10V dimming
- IP20 rated
- 110Ā° beam angle
- 50,000 hours lifetime | 5 year limited warranty
______________________________________________________________
Ā
Click here to view specifications
Installation GuideĀ
