Jubilee LED Lighting

$140.00
SKU: CP0031

LOC-10SQCP-MW(40/50/60/75) MCCT(30/40/50)-LV

SKU # CP0031

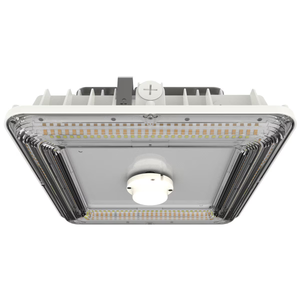

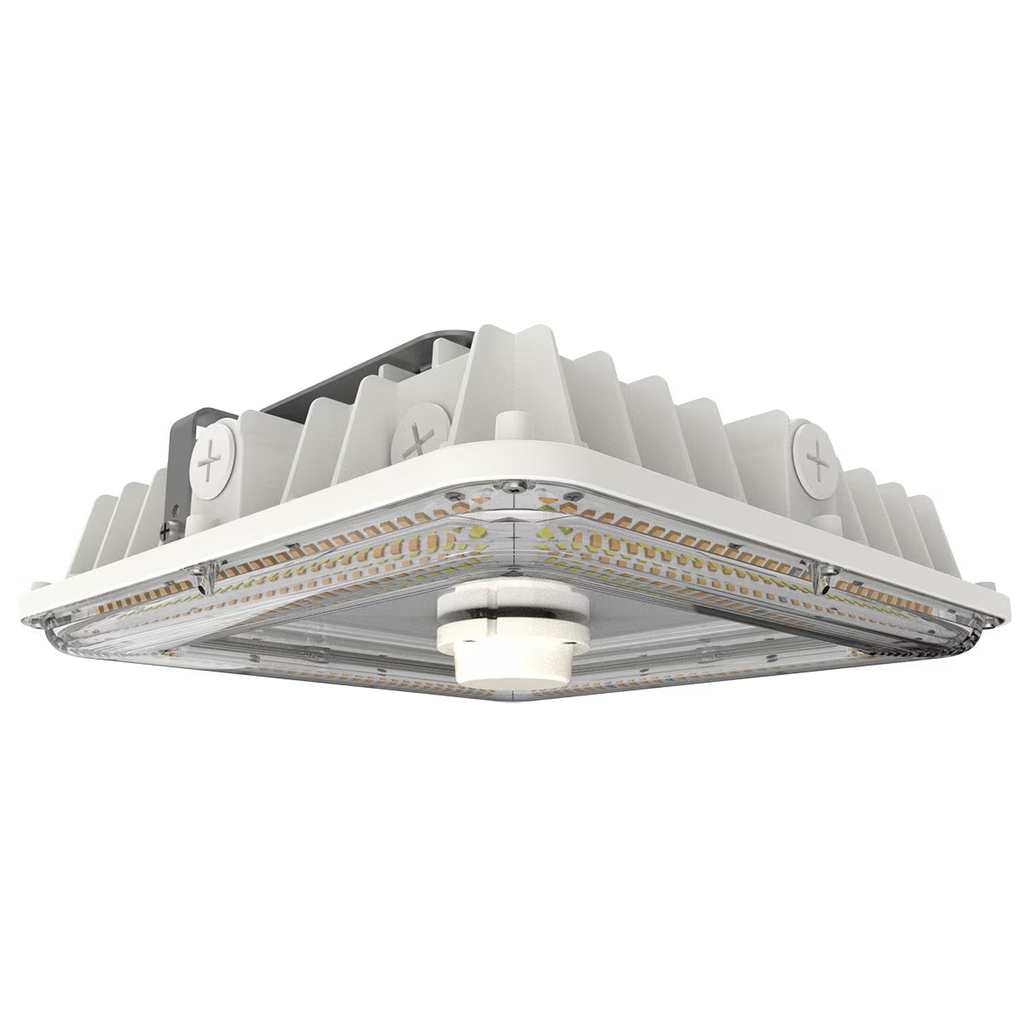

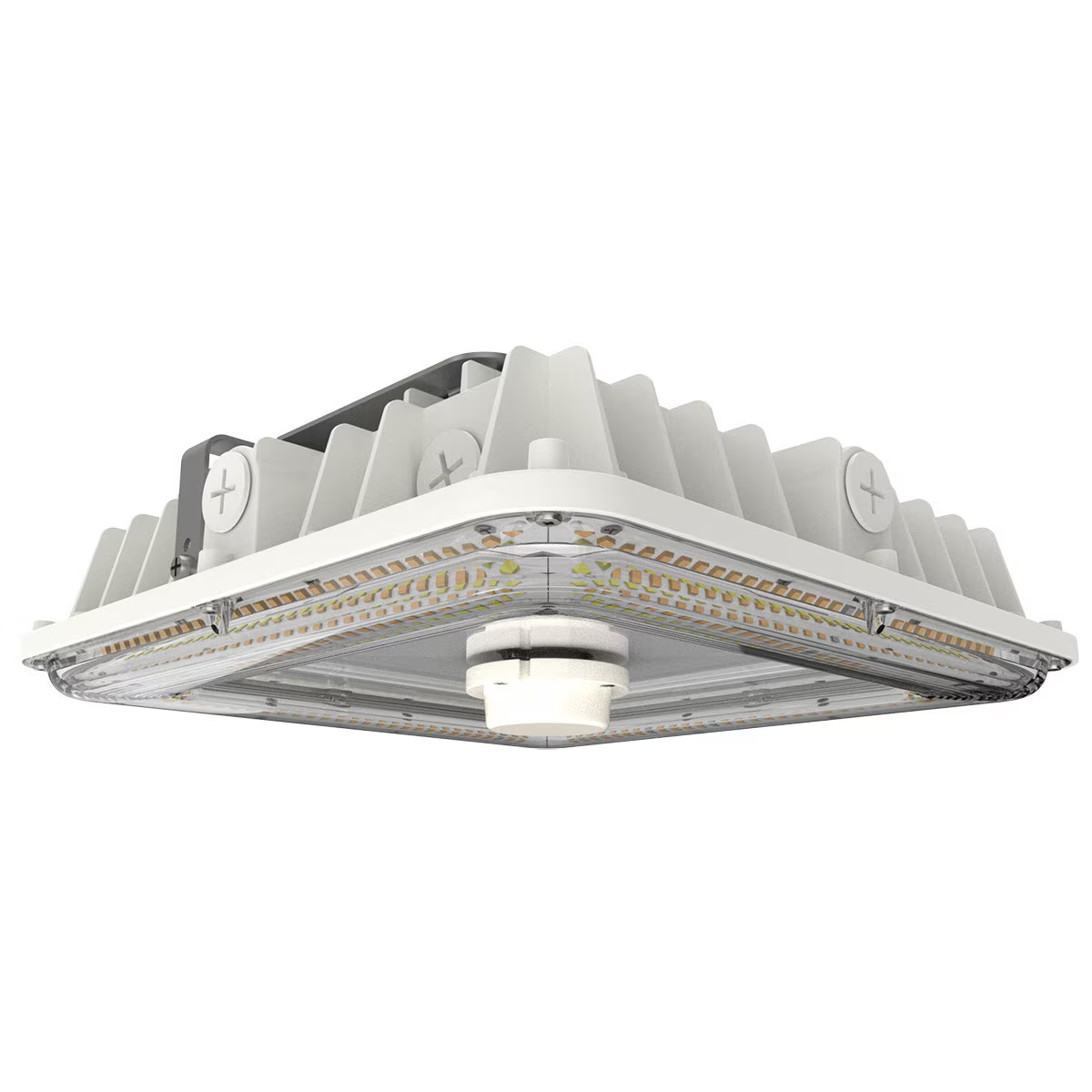

LOC-10SQCP-MW(40/50/60/75) MCCT(30/40/50)-LV- 10" SQUARE CANOPY , MULTI WATTAGE 40W/50W/60W/75W, MULTI CCT 3000K/4000K/5000K, 138LM/W, DIMMABLE, AC120-277V.
Wattage: Multiple Wattage, 40W, 50W, 60W, 75W
CCT: 3000K, 4000K, 5000K, Multiple Color Temperature
Voltage:120-277Vac





Features and Applications:
Warehouses, stadiums, factories, parking lots, shopping malls, supermarkets, logistic centers, and auto dealerships.

• Samsung 2835 LED Chips
• Die-cast aluminum housing
• Easy installation and maintenance
• Corrosion and rust proof.

  • Multi Wattage 40W, 50W, 60W, 75W
  • Default Watt: 75W
  • Multi CCT: 3,000K, 4,000K and 5,000K
  • Default CCT: 5,000K
  • 40W: 5,520LM 138LM/W
  • 50W: 6,900LM 138LM/W
  • 60W: 8,280LM 138LM/W
  • 75W: 10,350LM 138LM/W
  • Power Factor: 0.9
  • CRI: 70
  • THD: 15%
  • 120-277Vac
  • BUG Rating: B3-U3-G3
  • 0-10V dimming
  • IP65 rated
  • 147° beam angle
  • 50,000 hours lifetime | 5 year limited warranty




Technical Data Sheet

Installation GUIDE
