LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV

LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV
LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV
LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV
LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV

Jubilee LED Lighting

$235.00
SKU: HB0219/0233

LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV

SKU# HB0219/0233

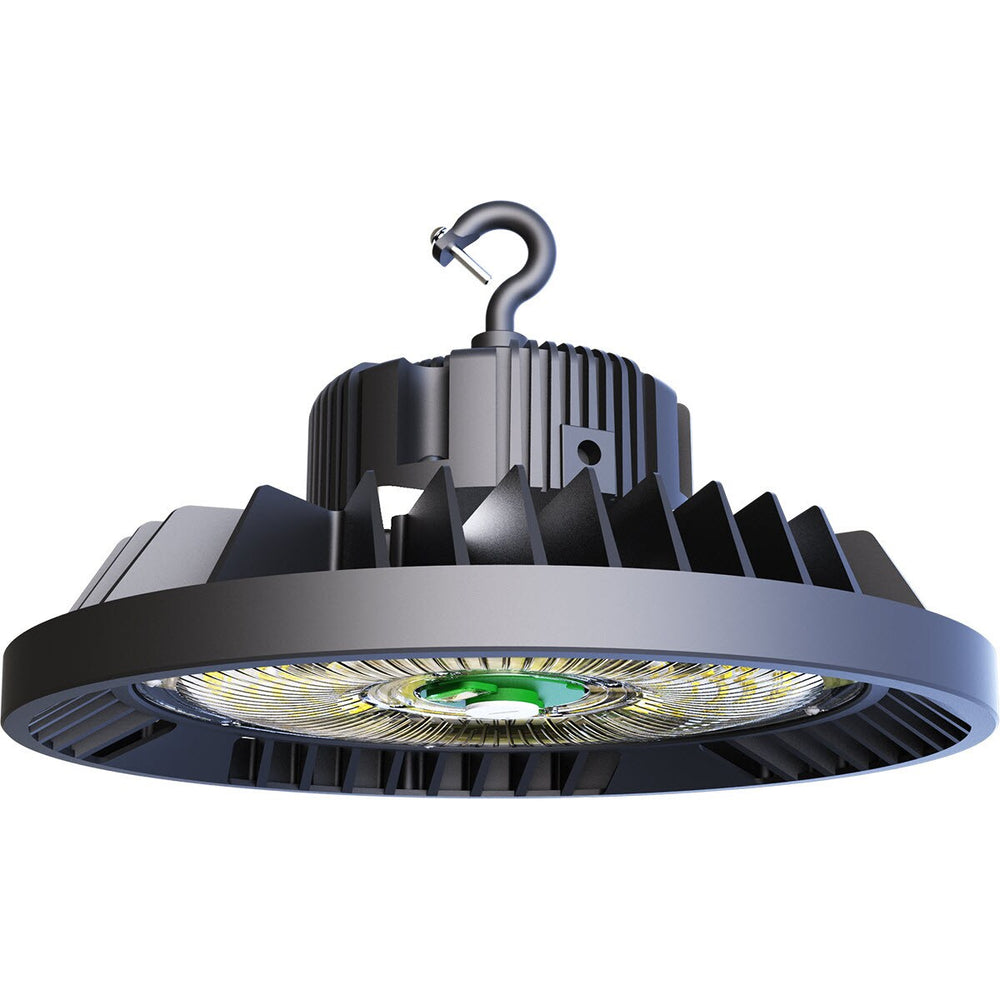

LOC-ELHB-MW(180/200/250) MCCT(30/40/50)-HV - LED HIGH BAY LIGHT MULTI WATT 180W, 200W AND 250W, MULTI CCT 3,000K, 4,000K AND 5,000K, 24,300LM-33,750LM, 135LM/W, 277-480V, 0-10V DIMMING
Wattage: Multiple Wattage, 180W, 200W, 250W
CCT: 5000K
Voltage:277-480Vac

Certifications:


_________________________________________________________________________

FEATURES AND SUITABLE APPLICATIONS



Suitable for warehouses, manufacturing facilities, convention centers, sporting arenas, big-box retail stores, cold storage facilities and gymnasiums.
• Philips Lumiled 3030 LED chips
• SPD 6KV
• Corrosive resistant polyester powder coat finish
• Aluminum Alloy
• Corrosion and rust proof
• Easy installation and maintenance

____________________________________________________________

Electrical Specifications:

  • Multi Wattage: 180W, 200W and 250W
  • Default Wattage: 250W
  • CCT: 3,000K, 4,000K, 5,000K
  • Default CCT: 5,000K
  • 180W: 24,300LM 135LM/W
  • 200W: 27,000LM 135LM/W
  • 250W: 33,750LM 135LM/W
  • Power Factor: 0.95
  • CRI: 70
  • THD: 15%
  • 277-480Vac, 50/60Hz
  • 0-10V dimming
  • IP66 rated
  • 120° beam angle
  • 50,000 hours lifetime | 5 year limited warranty

___________________________________________________________________



Download Tech sheet and Installation Guide


SPECIFICATION SHEET

INSTALLATION GUIDE
