LOC-FL-MW(100/150/200) MCCT(30/40/50)D
LOC-FL-MW(100/150/200) MCCT(30/40/50)D
SKU # FL0109
Certifications:
Item Description:

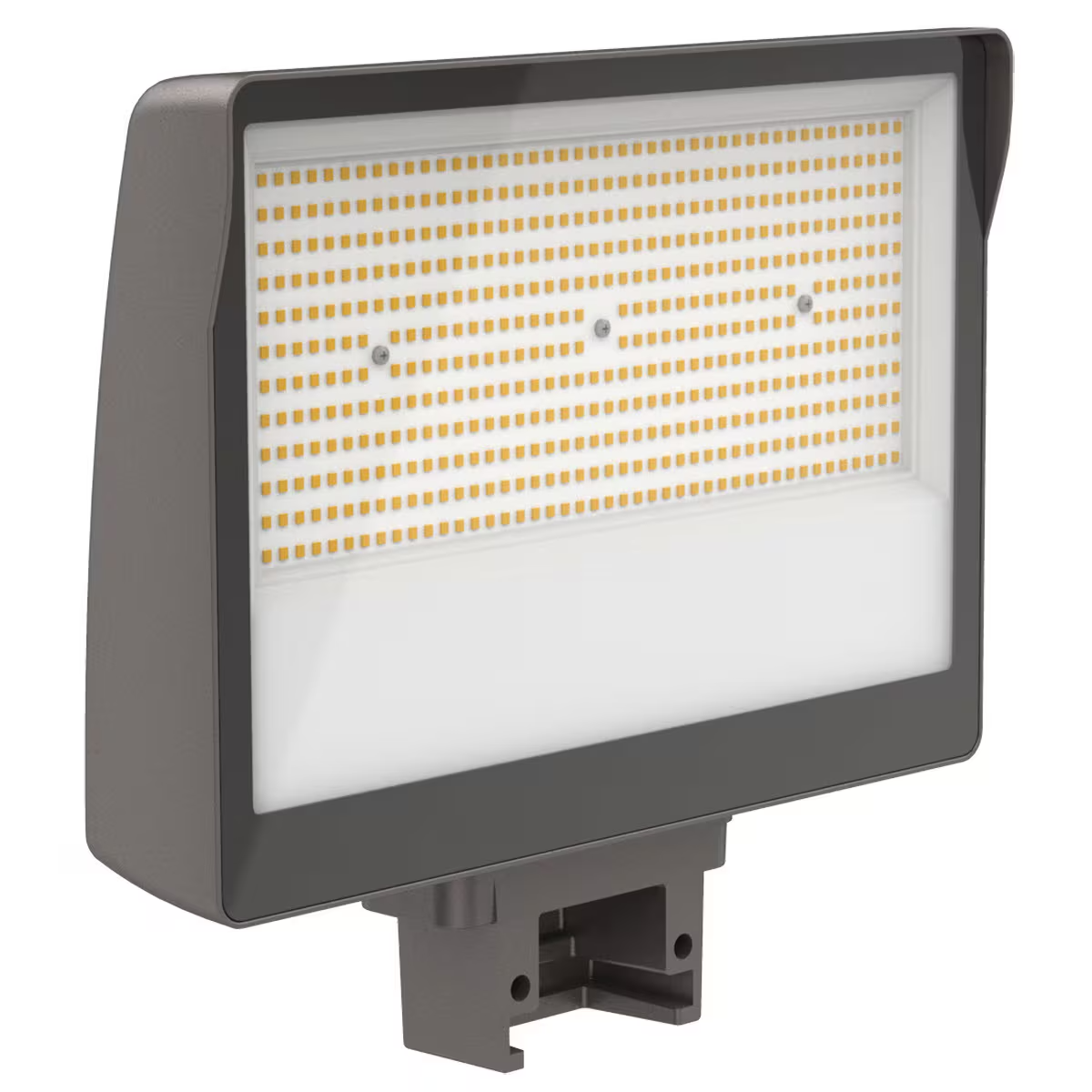

LOC-FL-MW(100/150/200) MCCT(30/40/50)D - LED OUTDOOR FLOOD LIGHT MULTI WATTAGE 100W/150W/200W, MULTI CCT 3000K/4000K/5000K, 120-277V, 0-10V DIMMABLE, IP65
Wattage: Multiple Wattage, 100W, 150W, 200W
CCT: 3000K, 4000K, 5000K, Multiple Color Temperature
Voltage:120-277Vac
Features & Applications:
|
General lighting for warehouses, stadiums, factories, parking lots, shopping malls, supermarkets, logistic centers & auto dealerships. |
|
• 20KV Surge protection • Photocell included (ON/OFF switch) • Easy installation & maintenance • No UV or Mercury |
- Multi Wattage: 100W, 150W and 200W
- Default Wattage: 200W
- Multi CCT: 3,000K, 4,000K and 5,000K
- Default CCT: 5,000K
- 100W: 15,000LM 150LM/W
- 150W: 22,500LM 150LM/W
- 200W: 30,000LM 150LM/W
- Power Factor: 0.9
- CRI: 80
- THD: 20%
- 120-277Vac
- 0-10V dimming
- IP65 rated
- 7H*7V° beam angle
- 50,000 hours lifetime | 5 year limited warranty
Specifications
TECHNICAL DATA SHEET
INSTALLATION GUIDE
--------------------------------------------------------------------------------
