Jubilee LED Lighting

$100.00
SKU: FL0115

LOC-BSF-MW(10.5/20/30)MCCT (30/40/50)D
SKU # FL0115

Certifications:Ā

Ā  Ā

Item Description:Ā

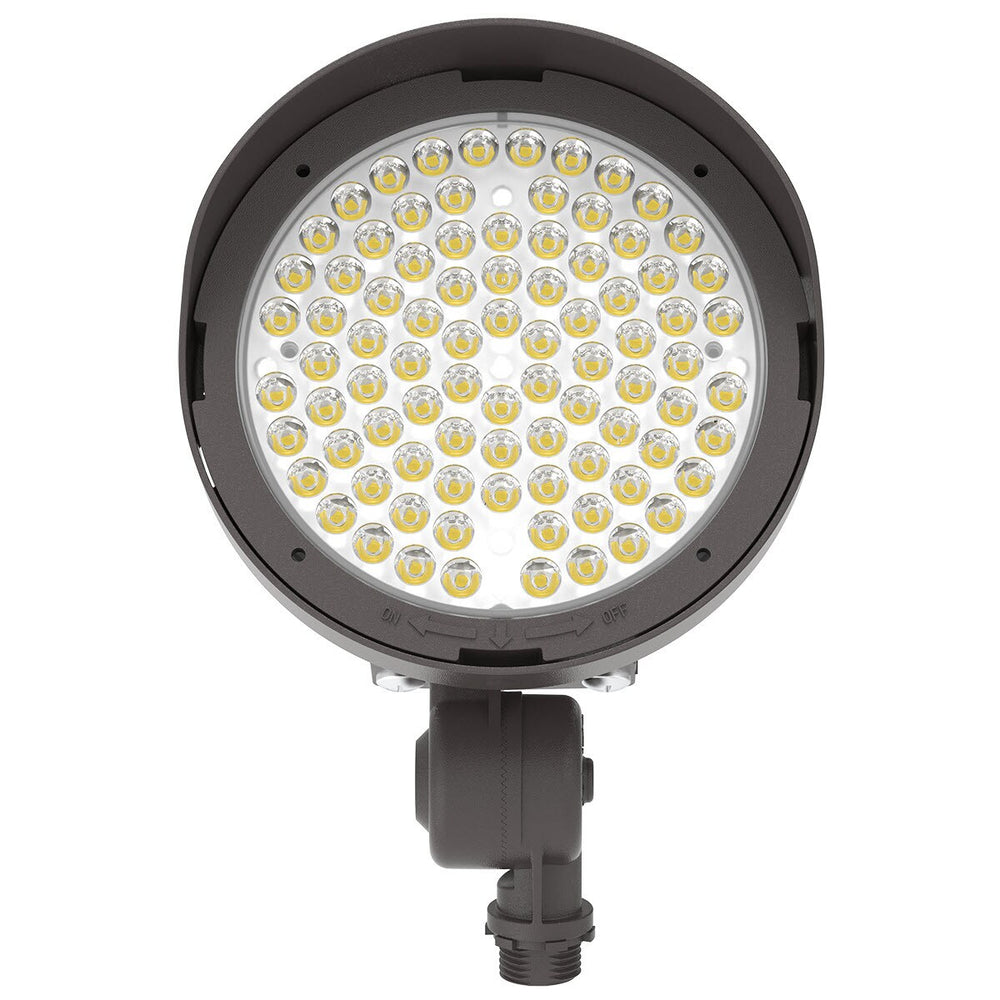

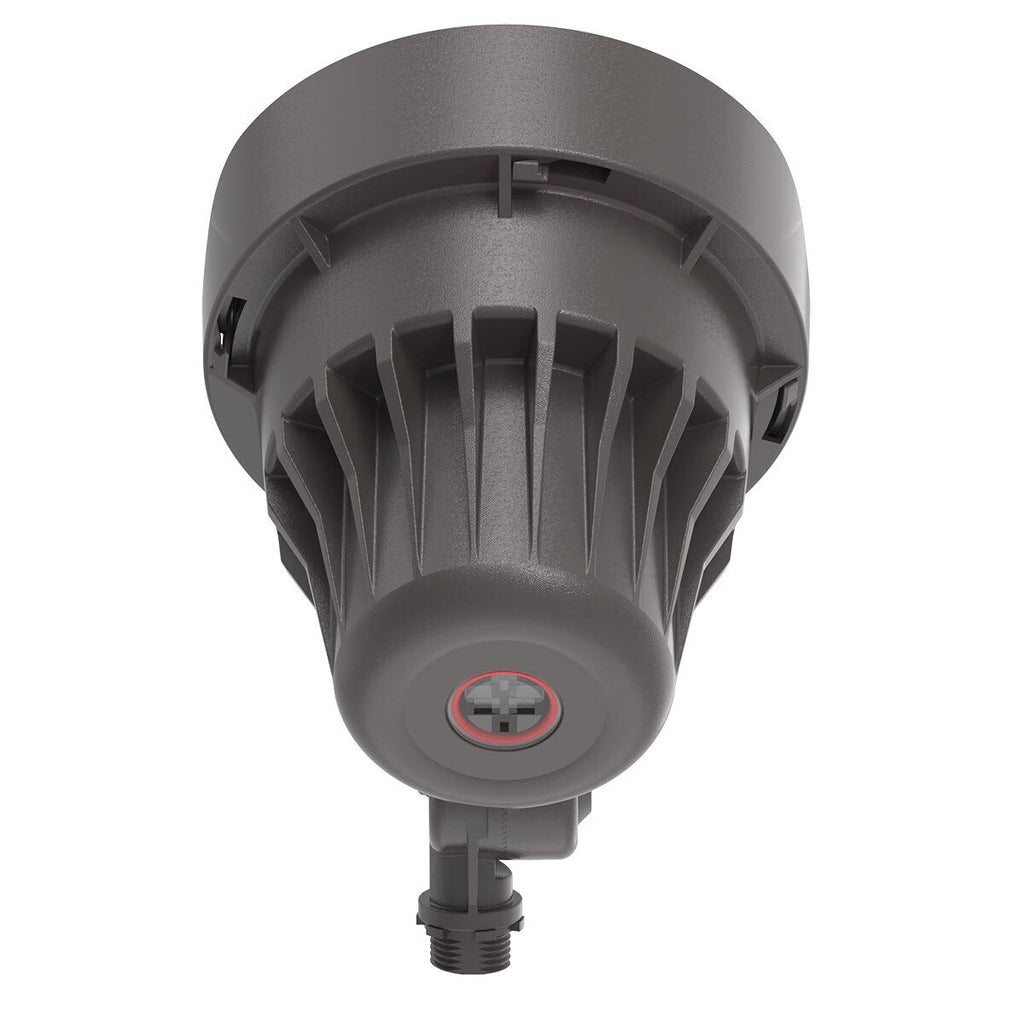

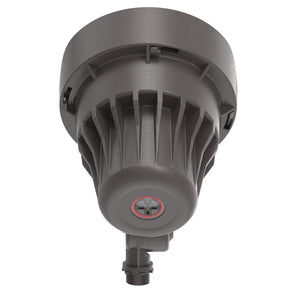

LOC-BSF-MW(10.5/20/30)MCCT (30/40/50)D - LED OUTDOOR BULLET SPOT FLOOD LIGHT MULTI WATTAGE 10.5W/20W/30W, MULTI CCT 3000K/4000K/5000K, 120-347V, 0-10V DIMMABLE, IP66
Wattage: Multiple Wattage, 10.5W, 20W, 30W
CCT: 3000K, 4000K, 5000K, Multiple Color Temperature
Voltage:120-277Vac

Features &Ā Applications:Ā

Ā

Ā

General lighting forĀ flag poles, yards & shopping malls.
ā€¢ IP66 rated
ā€¢Ā Photocell included (ON/OFF switch)Ā
ā€¢Ā Easy installation & maintenance
ā€¢Ā No UV or Mercury


  • Multi Wattage: 10.5W, 20W and 30W
  • Default Wattage: 30W
  • Multi CCT: 3,000K, 4,000K and 5,000K
  • Default CCT: 5,000K
  • 10.5W: 1,396.5LM 133LM/W
  • 20W: 2,660LM 133LM/W
  • 30W: 3,990LM 133LM/W
  • Power Factor: 0.9
  • CRI: 83
  • THD: 20%
  • 120-347Vac
  • 0-10V dimming
  • IP66 rated
  • 7H*7VĀ° beam angle
  • 50,000 hours lifetime | 5 year limited warranty
Specifications

TECHNICAL DATA SHEET

INSTALLATIONĀ GUIDE
