Jubliee LED Lighting

$250.00
SKU: TP0020

LOC-PT-MW(25/50/75/100) MCCT(30/40/50)

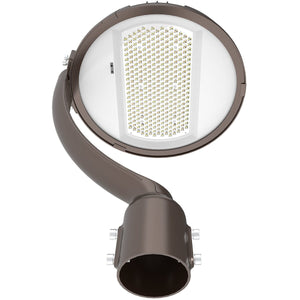

LOC-PT-MW(25/50/75/100) MCCT(30/40/50) - LED POST TOP LIGHT, MULTI WATTAGE 25W, 50W, 75W, 100W, MULTI CCT 3000K, 4000K, 5000K, DIMMABLE, AC120-277V

SKU # TP0020

Wattage: Multiple Wattage, 25W, 50W, 75W, 100W
CCT: 3000K, 4000K, 5000K, Multiple Color Temperature
Voltage:120-277Vac





_____________________________________________________________________

FEATURES AND APPLICATIONS

Area light, Parking decks, Auto dealerships, High masts, Housing complexes, Shopping malls, Sporting complexes, Parks and Recreational area and Municipal lots.

• Built-in motion sensor with photocell

• Lumileds SMD2835 LED Chips
•Die-cast Aluminum
• Type 5 lens
• No UV or IR in the beam

Electrical Specifications:

  • Multi Wattage: 25W, 50W, 75W and 100W
  • Default Wattage: 100W
  • Multi CCT: 3,000K, 4,000K and 5,000K
  • Default CCT: 5,000K
  • 25W: 2,921.5LM 116.86LM/W
  • 50W: 5,843LM 116.86LM/W
  • 75W: 8,764.5LM 116.86LM/W
  • 100W: 11,686LM 116.86LM/W
  • Power Factor: 0.9
  • CRI: 71
  • THD: 15%
  • 120-277Vac, 50/60Hz
  • 0-10V dimming
  • IP65 rated
  • 100*140° beam angle
  • 50,000 hours lifetime | 5 year limited warranty

_________________________________________________________________________

    _______________________________________________________________________

     Download Spect Sheet and Installation Guide


    Click here for Specifications

    Installation Guide



    ______________________________________________________________________________________



    Jubilee LED Lighting…. Lighting forever

    • Commercial Lighting
    • Residential lighting
    • Industrial Lighting

    Call for more information : 865-329-7257

    *************************************************************************************

    certification
