Jubliee LED Lighting

$168.00
SKU: WP0134

LOC-WP-MW(60/80/100/120)50KDLV

SKU: 0134

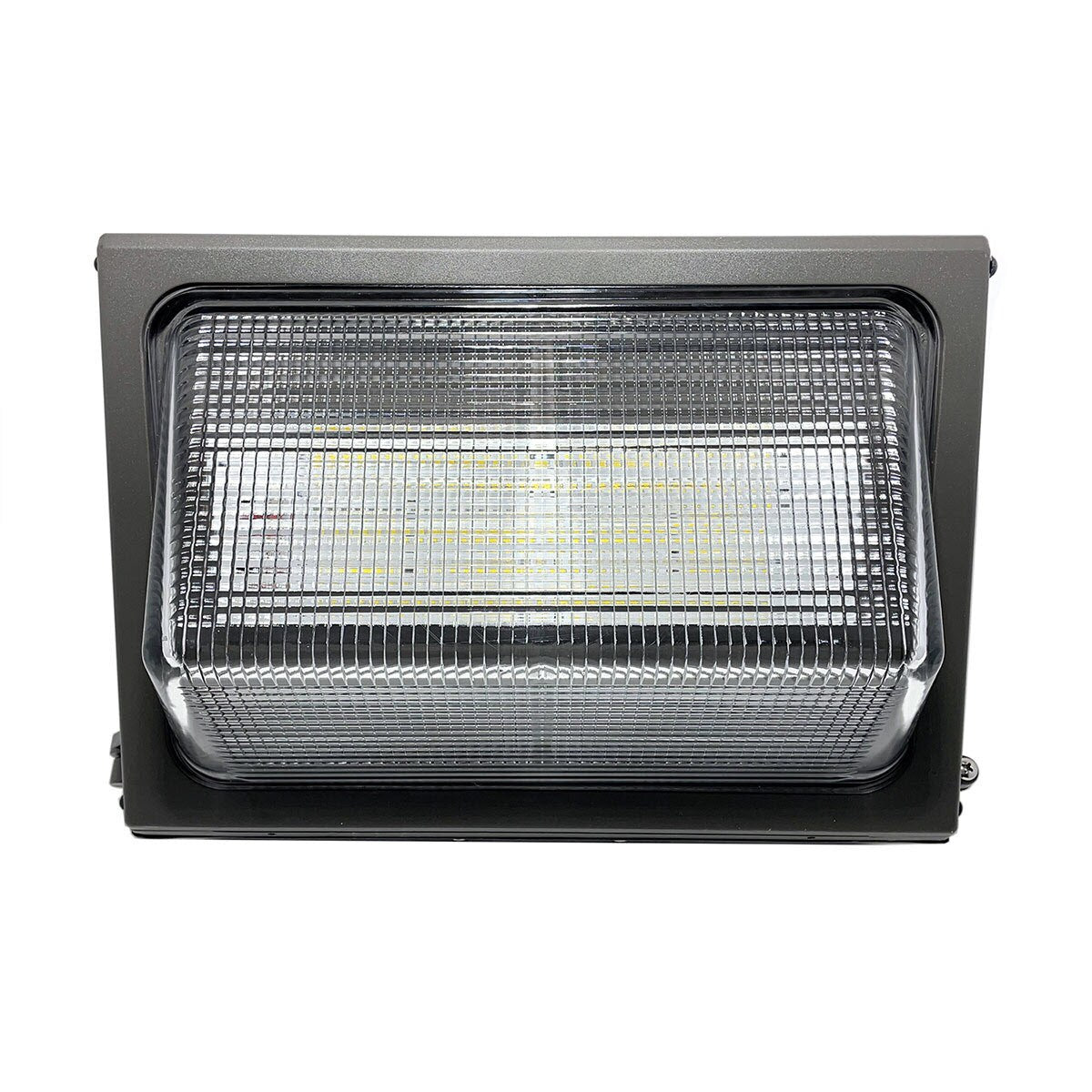

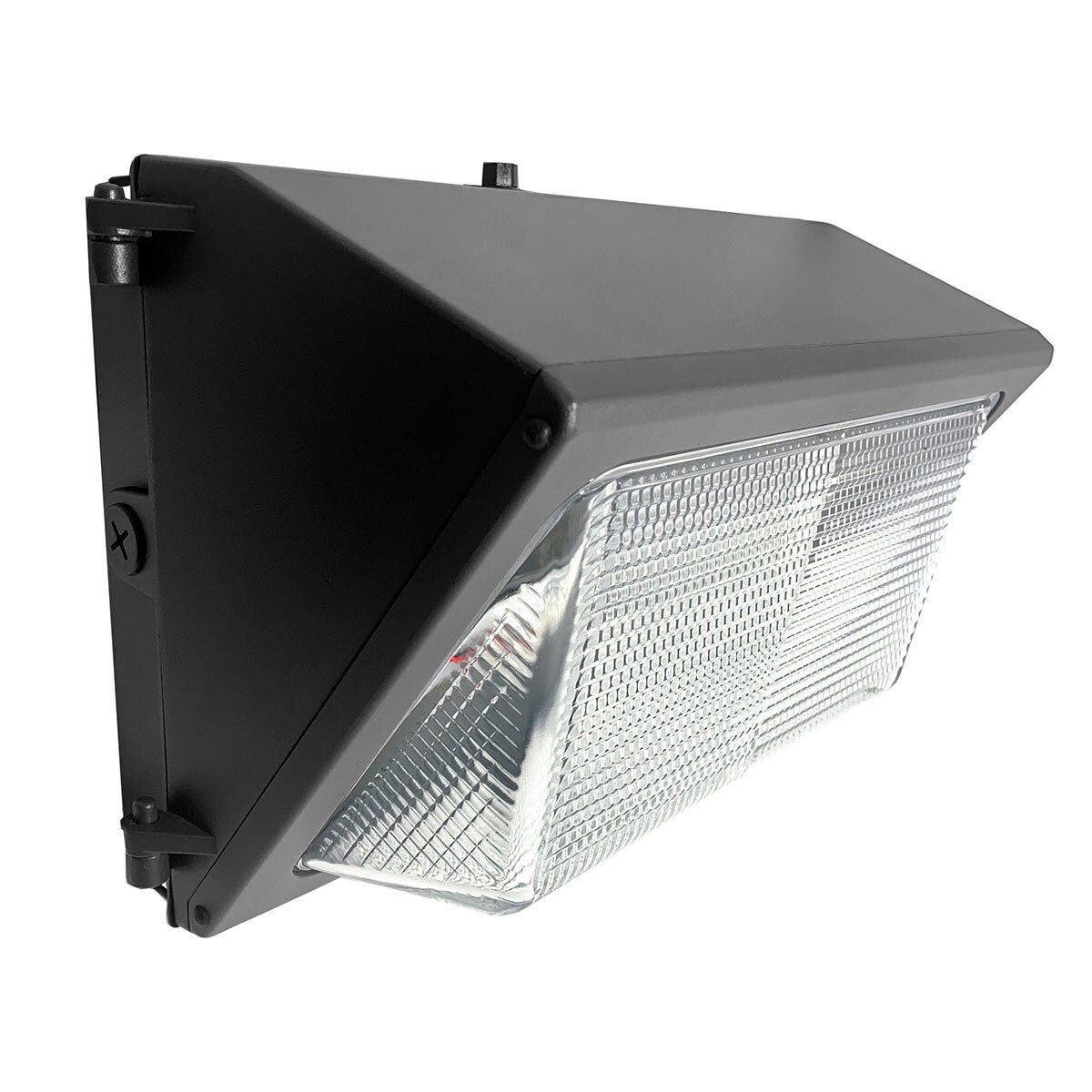

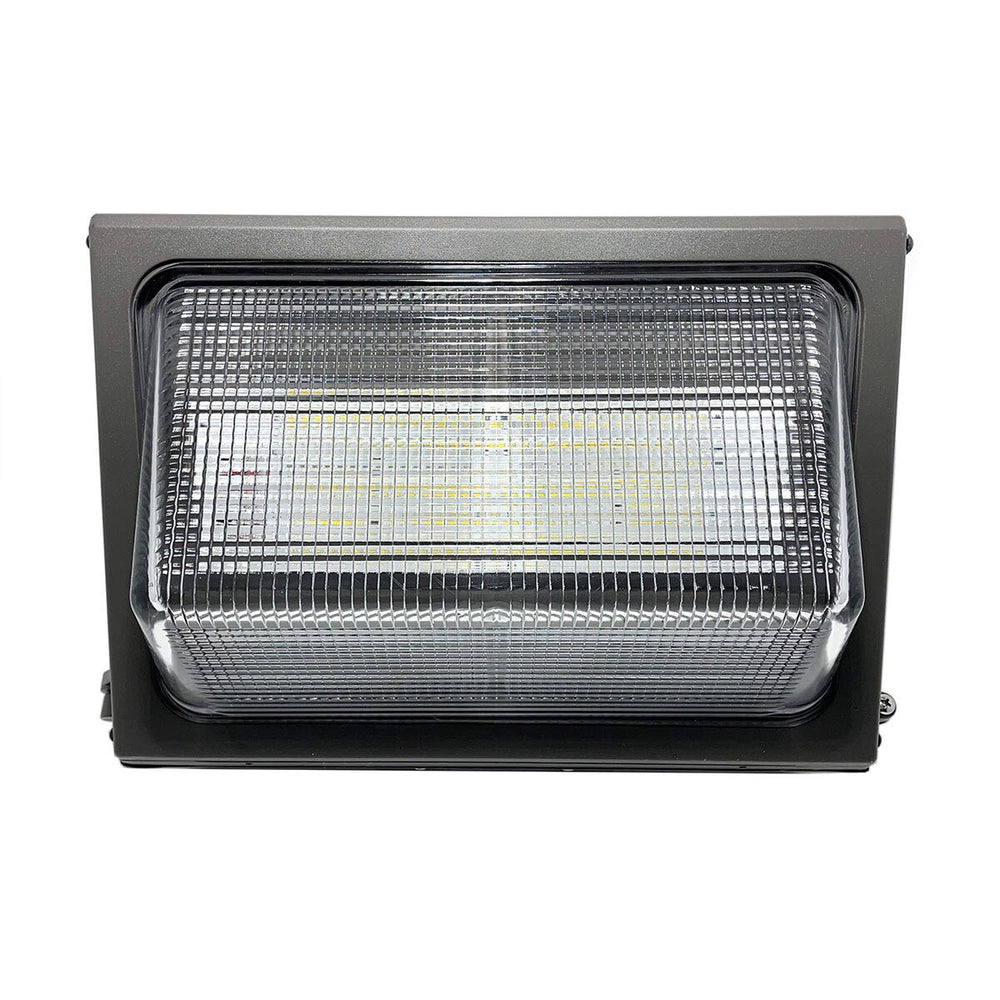

LOC-WP-MW(60/80/100/120)50KDLV - TAA COMPLIANT LED WALL PACK, MULTI-WATTAGE 60W, 80W, 100W AND 120W, 5000K, 0-10V DIMMING, PHOTOCELL INCLUDED, IP65
Wattage: Multiple Wattage, 60W, 80W, 100W, 120W
CCT: 3000K, 4000K, 5000K, Multiple Color Temperature
Voltage:120-277Vac


Features and Applications
Warehouses, stadiums, factories, residential complexes, parking lots, shopping malls, supermarkets, logistic centers, auto dealerships, and more.

•Lumiled LUXEON 3030 2D LED Chips
•Semi cut-off
• Heavy die-cast aluminum housing with polyester powder-coated finish and glass lens
•Integral secondary heat sink to optimize thermal transfer and maximize performance of the LEDs
• Easy installation and maintenance - Quick mount back plate
• Corrosion and rust proof.

  • Multi Wattage: 60W, 80W, 100W and 120W
  • Default Wattage: 120W
  • CCT: 5,000K
  • 60W 8,286LM 138.1LM/W
  • 80W 11,048M 138.1LM/W
  • 100W 13,810LM 138.1LM/W
  • 120W 16,572LM 138.1LM/W
  • Power Factor: 0.967
  • CRI: 74
  • THD: 8%
  • 120-277Vac, 50/60Hz
  • BUG Rating: B-U-G
  • 0-10V Dimming
  • Photocell included
  • IP65 rated
  • 120° beam angle
  • 50,000 hours lifetime | 5 year limited warranty
SPECT SHEET

INSTALLATION GUIDE.


For more information call us at: 865-329-7257



Jubilee LED Lighting…. Lighting forever
