Jubliee LED Lighting

$178.00
SKU: WP0136


LOC-WPA-MW(50/70/85/100) MCCT(30/40/50)

SKU: 0136

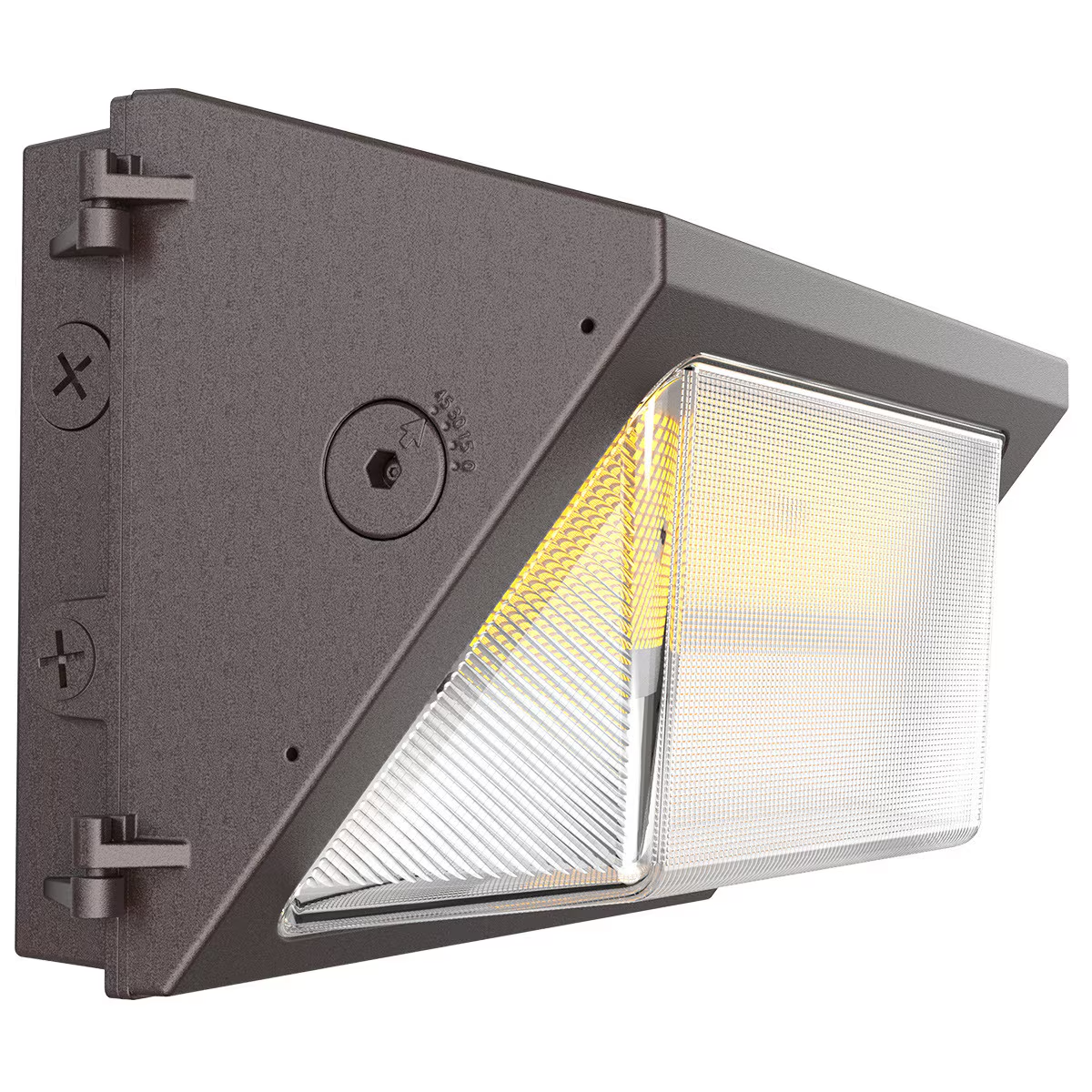

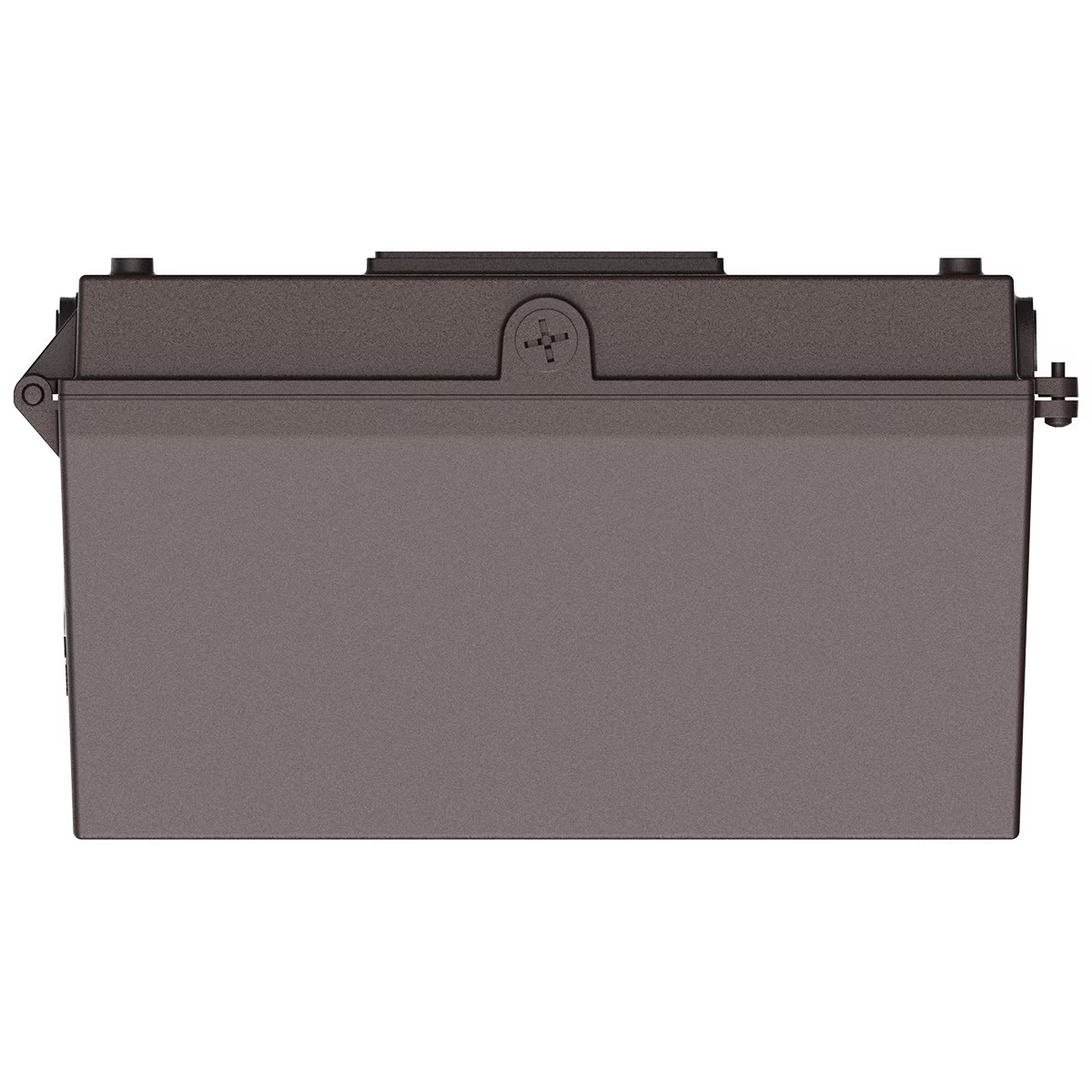

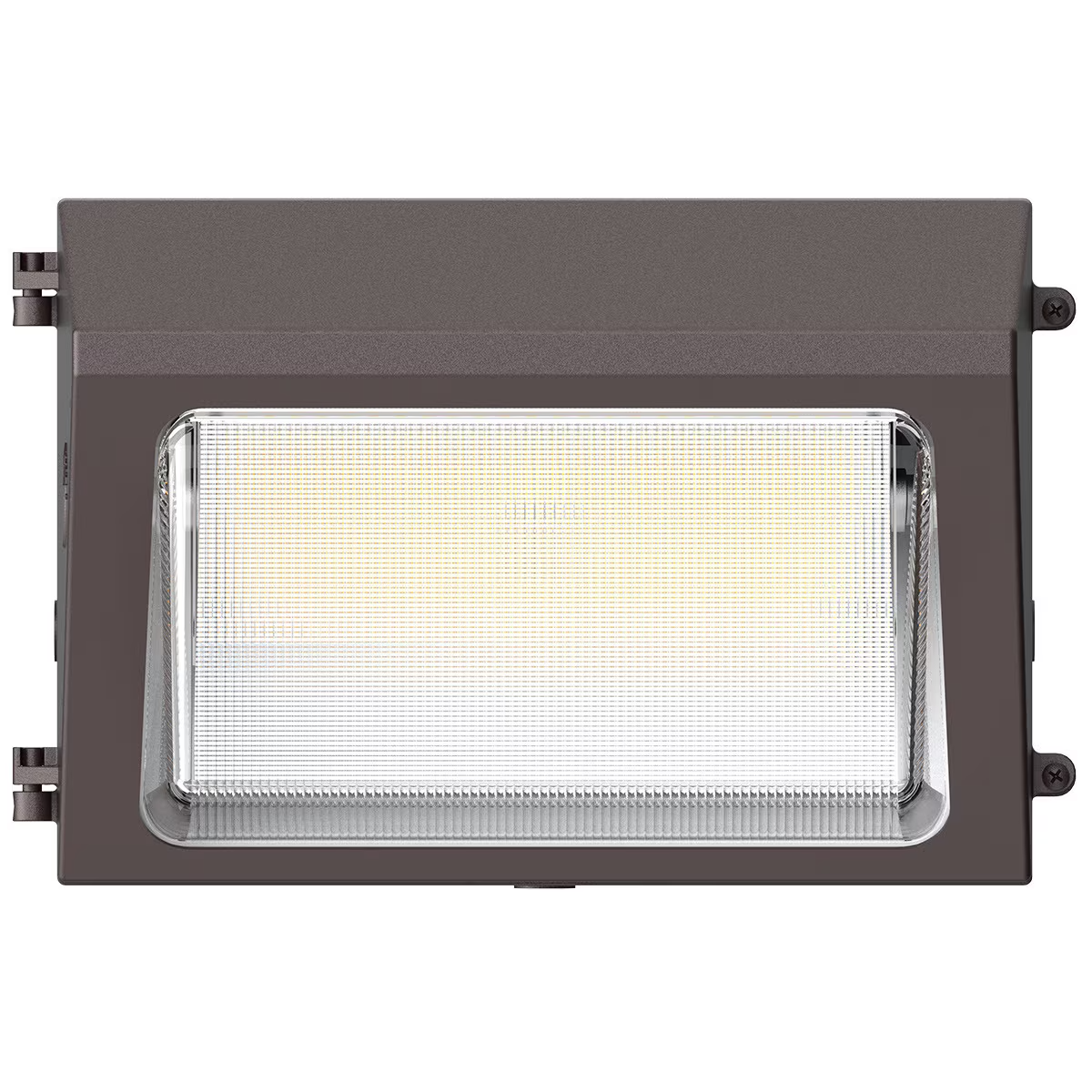

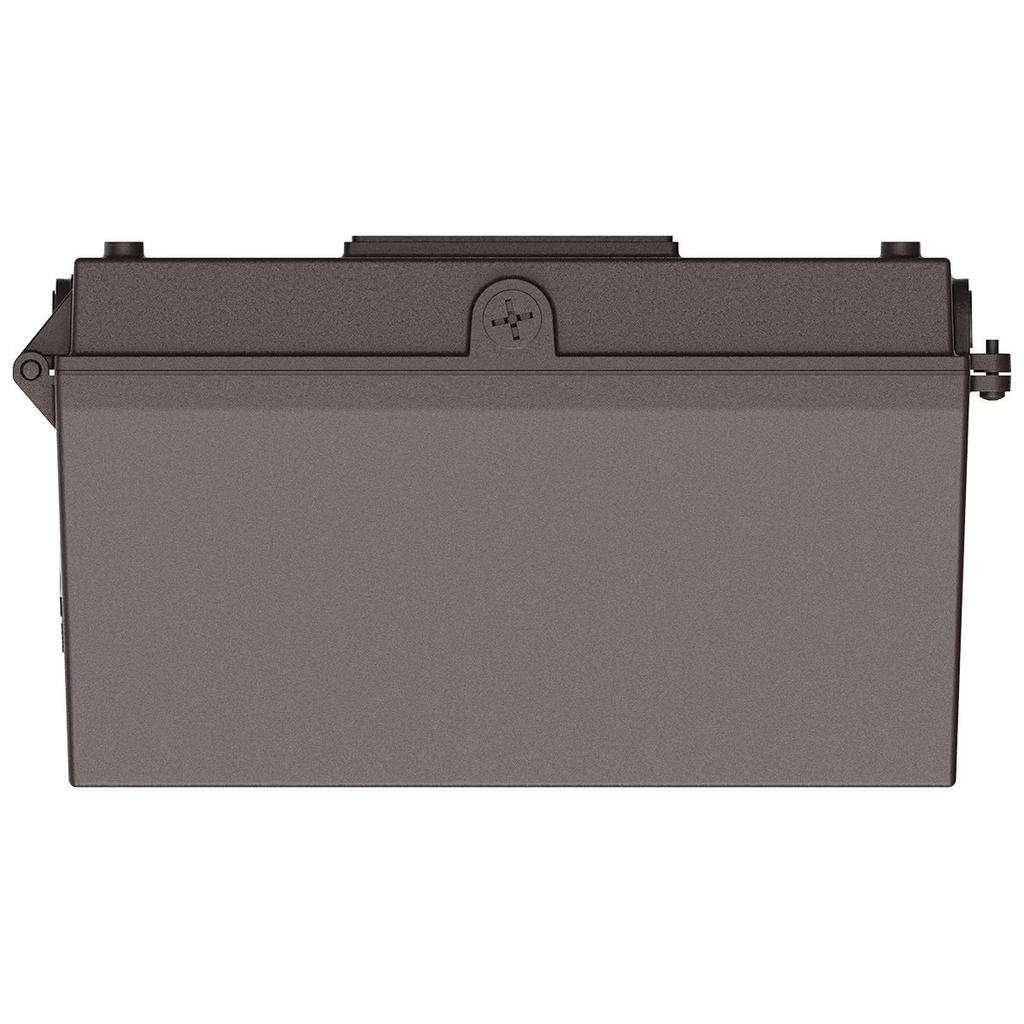

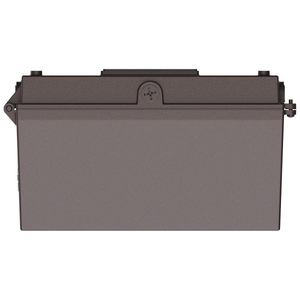

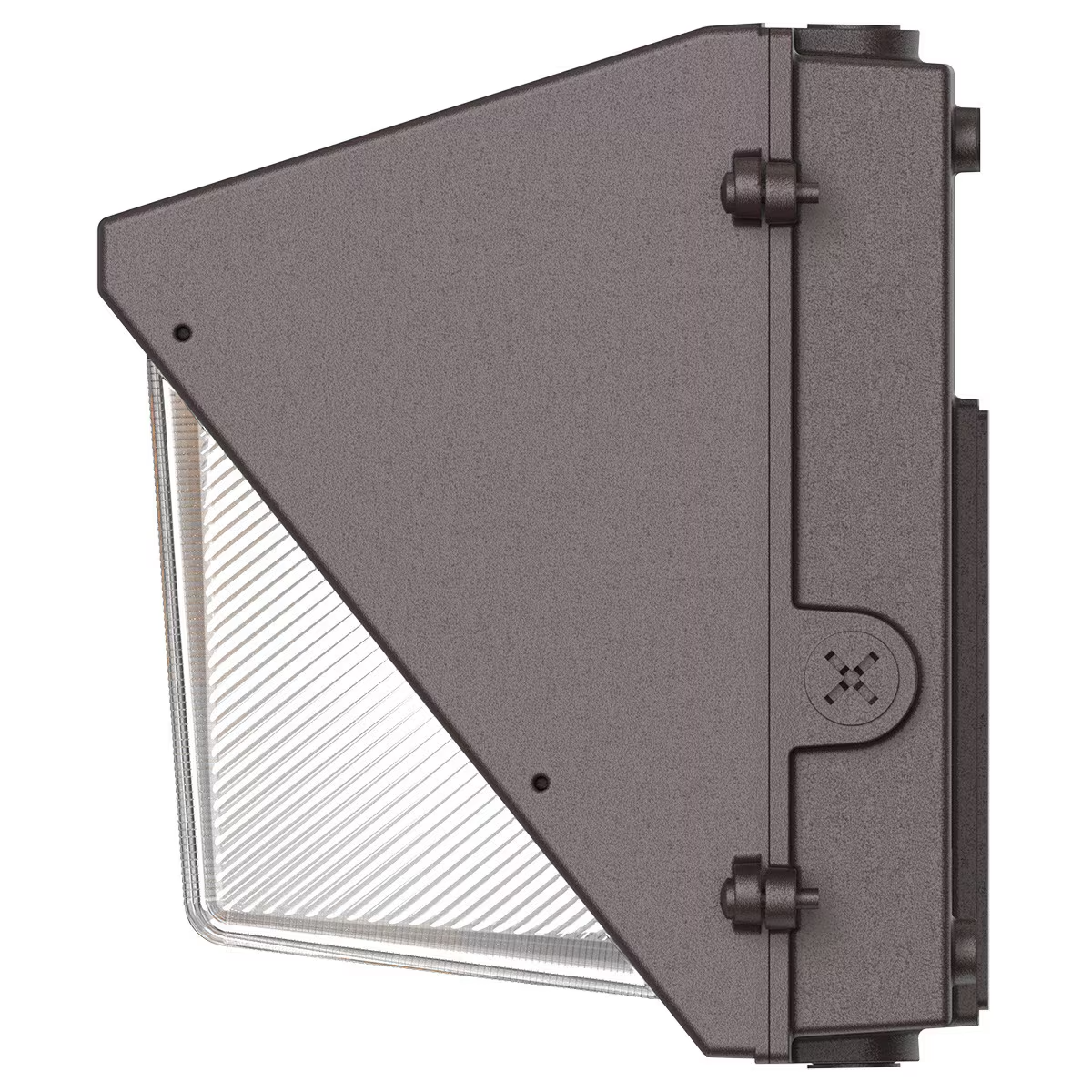

LOC-WPA-MW(50/70/85/100) MCCT(30/40/50) - WALL PACK MULTI WATTAGE 50W/70W/85W/100W, MULTI CCT 3000K/4000K/5000K
Wattage: Multiple Wattage, 50W, 70W, 85W, 100W
CCT: 3000K, 4000K, 5000K, Multiple Color Temperature
Voltage:120-277Vac


Features and Applications
Warehouses, stadiums, factories, residential complexes, parking lots, shopping malls, supermarkets, logistic centers, auto dealerships, and more.

•Lumiled LUXEON 3030 2D LED Chips
•Semi cut-off
• Heavy die-cast aluminum housing with polyester powder-coated finish and glass lens
•Integral secondary heat sink to optimize thermal transfer and maximize performance of the LEDs

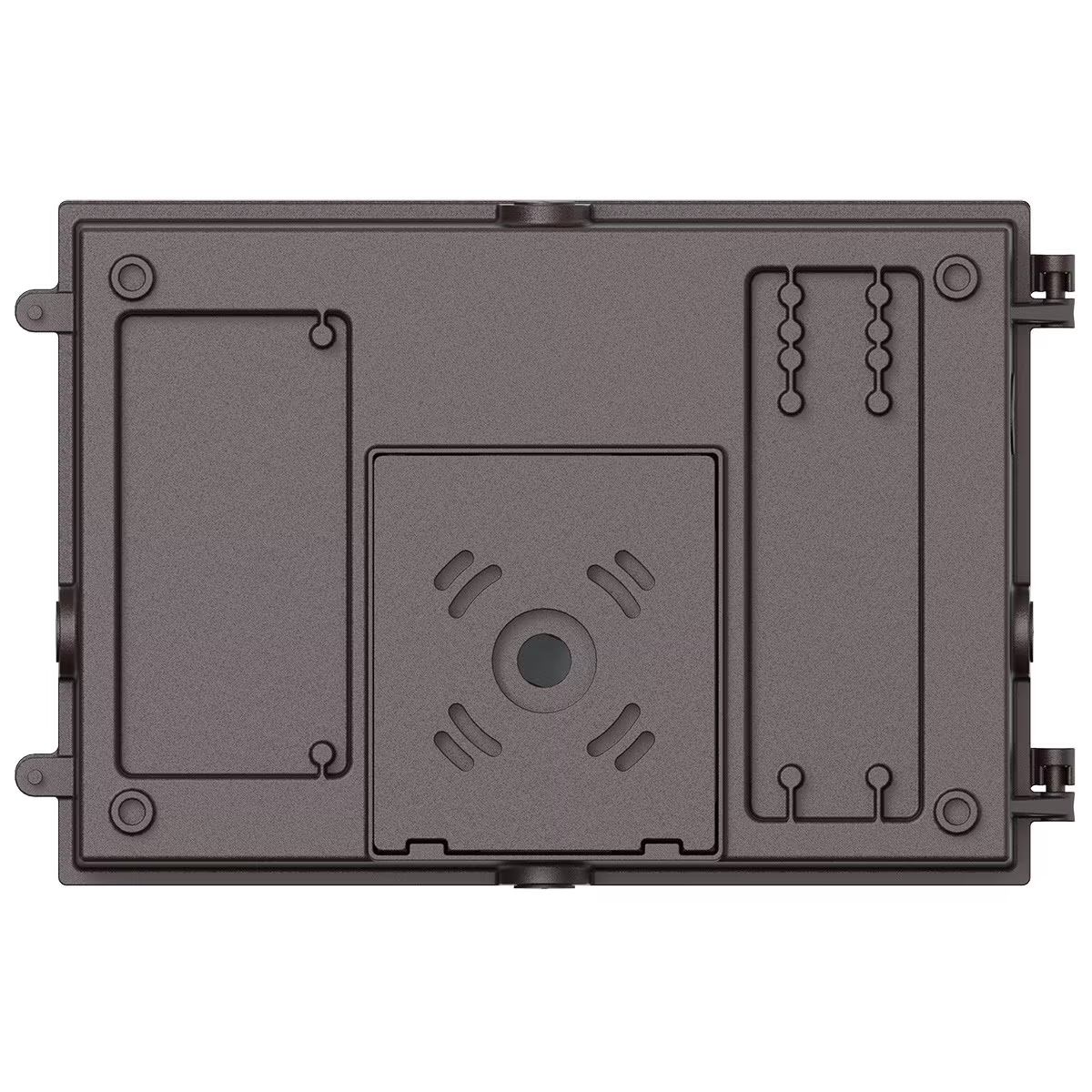

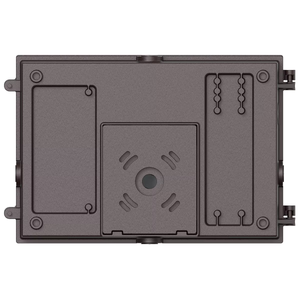

• Easy installation and maintenance - Quick mount back plate
• Corrosion and rust proof.

  • Multi Wattage: 50W, 70W, 85W and 100W
  • Default Wattage: 100W
  • Multi CCT: 3,000K, 4,000K and 5,000K
  • Default CCT: 5,000K
  • 50W 6,000LM 120LM/W
  • 70W 8,400LM 120LM/W
  • 85W 10,200LM 120LM/W
  • 100W 12,000LM 120LM/W
  • Power Factor: 0.9
  • CRI: 80
  • THD: 20%
  • 120-277Vac, 50/60Hz
  • BUG Rating: B3-U3-G3
  • 0-10V Dimming
  • IP65 rated

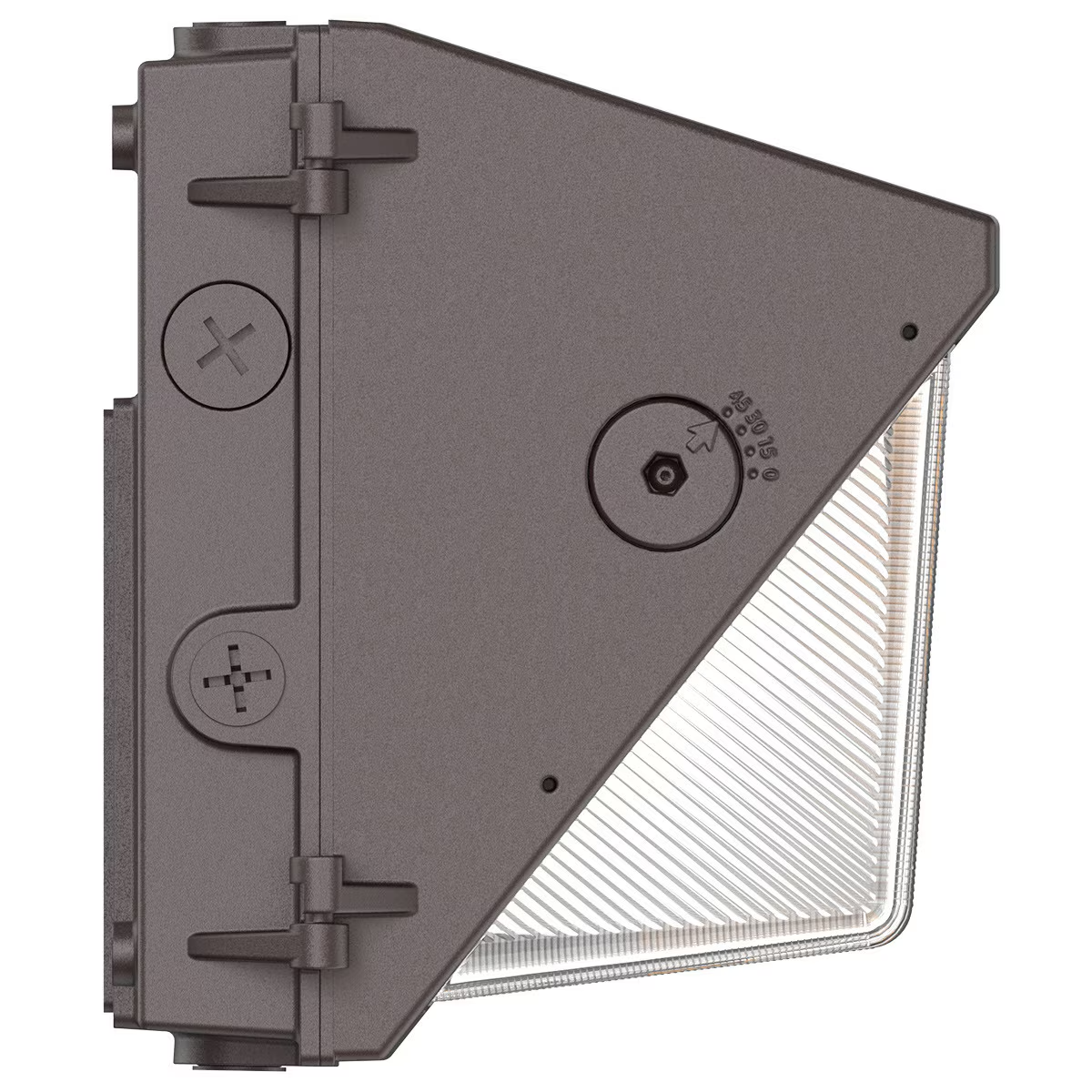

  • 0° to 45° tilt adjustment beam angle
  • 50,000 hours lifetime | 5 year limited warranty
